Rent Blackmagic Design Video Assist 7" 12G HDR
- Panel Type TFT LCD
- Display Size 7.0" / 17.8 cm
- Aspect Ratio 16:10
- Touchscreen Yes
- Maximum Brightness 2500 cd/m2
- Pixels Per Inch (ppi) 323 ppi ...
- Panel Type TFT LCD
- Display Size 7.0" / 17.8 cm
- Aspect Ratio 16:10
- Touchscreen Yes
- Maximum Brightness 2500 cd/m2
- Pixels Per Inch (ppi) 323 ppi
- Image Controls Histogram, Picture-in-Picture, RGB Parade, Vectorscope, Waveform
-
6 hours
1260 i
half shift
-
1 shift
1800 i
shift
-
3 shift
4860 i
1620 i / shift
-
14 shift
20160 i
1440 i / shift
-
30 shift
37800 i
1260 i / shift
Enter a value between 1 and 60
Calculator
Best Price Guaranteed!
The trend in the movie rent is not only easy and pleasant, but also profitable. We guarantee the lowest prices in the city. Found a price lower in another rental Petersburg? Take a screenshot of the official website page, send it by mail rent@kino.rent or in social networks, and we will reduce the cost of rent.
Recorder
- Frequency range
- Hz
Monitor parameters
- Diagonal
- 7''
- Resolution
- 1920 х 1200
- Sensor type
- IPS
- Viewing Angle
- 135 °
- Brightness
- 2500 cd/m2
- Pixel size
- 441
- Additional functions
- Histogram Waveform Vectorscope RGB Parade
- -
- 10 bit
Power
- Battery
- NP-F
Input and Output
- audio and video interface
- HDMI 12G‑SDI
Physical
- Width
- 193 mm
- Height
- 130.5 mm
- Depth
- 37 mm
- Weight (kg)
- 825 g

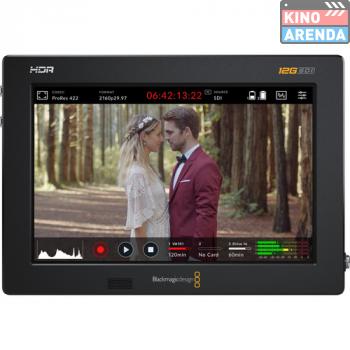

Add professional monitoring and high-quality recording to virtually any camera with the Video Assist 7" 12G-SDI/HDMI HDR Recording Monitor from Blackmagic Design. It features a bright 7", 1920 x 1200 display with 2500 cd/m² brightness to help you frame and focus your shots, and provides 12G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. The monitor also features two balanced 3-pin mini-XLR inputs with 48V phantom power support for crisp audio recording. You can monitor and record HDR video up to DCI 4K, UHD 4K, 2K, or HD 10-bit 4:2:2 and up to 16 channels of embedded 24-bit 48 kHz audio.
The Video Assist records using dual high-speed UHS-II SD slots to SDHC/XC memory cards. You can also use the USB 3.1 Gen 1 Type-C port to record to an external drive, as well as use it for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD and DNxHR codecs.
The monitor's touchscreen interface allows you to adjust settings and access monitoring features such as histogram, waveform, RGB parade, vectorscope, and many more scopes and exposure tools. There is also a tally light on top of the monitor to indicate that it is operating and recording. To power the monitor, a 12V power adapter is included. It also has dual battery slots on the rear to power the monitor using separately available Sony L-series type batteries.
When you update the firmware to version 3.3, Blackmagic has introduced USB webcam output, so the monitor can send a full 1080p signal to your computer over USB in a streaming-friendly format. Also added is audio monitoring channel selection. This 7" version also gains XLR audio mapping to different channels and XLR external timecode.
Rent a Blackmagic Design Video Assist 7" 12G-SDI/HDMI HDR Recording Monitor in Saint-Petersburg at KinoArenda
The Video Assist 7" 12G-SDI/HDMI HDR Recording Monitor from Blackmagic Design. It features a bright 7", 1920 x 1200 display with 2500 cd/m² brightness to help you frame and focus your shots, and provides 12G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. The monitor also features two balanced 3-pin mini-XLR inputs with 48V phantom power support for crisp audio recording. You can monitor and record HDR video up to DCI 4K, UHD 4K, 2K, or HD 10-bit 4:2:2 and up to 16 channels of embedded 24-bit 48 kHz audio.
